Our Specialist Lifting and Haulage Fleet

We have six specially chosen vehicles in our fleet, including some modified especially for the type of work we do, all lorries have Euro VI engines, hold the new HGV Safety Permit to comply with Direct Vision Standards, have Edge Ware protection fitted and all cranes have been adapted to updated Product design Standard, BS EN 12999 regarding Swing-Up Stabiliser Safety.

VOLVO FH (4) 6 X 4 D13K540

Crane specifications
Make	Palfinger
Model	65002 SH + Fly
Max Height	Main Boom 21 m Fly 34m
Max Radius	Main Boom 18m Fly 31m
SWL @ Max Radius	Main Boom 2500kgsFly 470kgs
Max SWL	12,900kgs @ 4.2m

This truck crane has a hoist (wire) capacity and can be used as a small rigid, wagon and drag or artic.

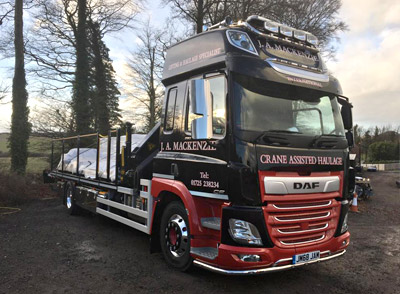

DAF FA CF-L290

Crane specifications
Make	Palfinger
Model	18002 EH
Max Height	15 metres
Max Radius	12.4 metres
SWL @ Max Radius	1140kg
Max SWL	3850kg @ 4.1m

Useful and cost effective truck for express deliveries through London and UK.

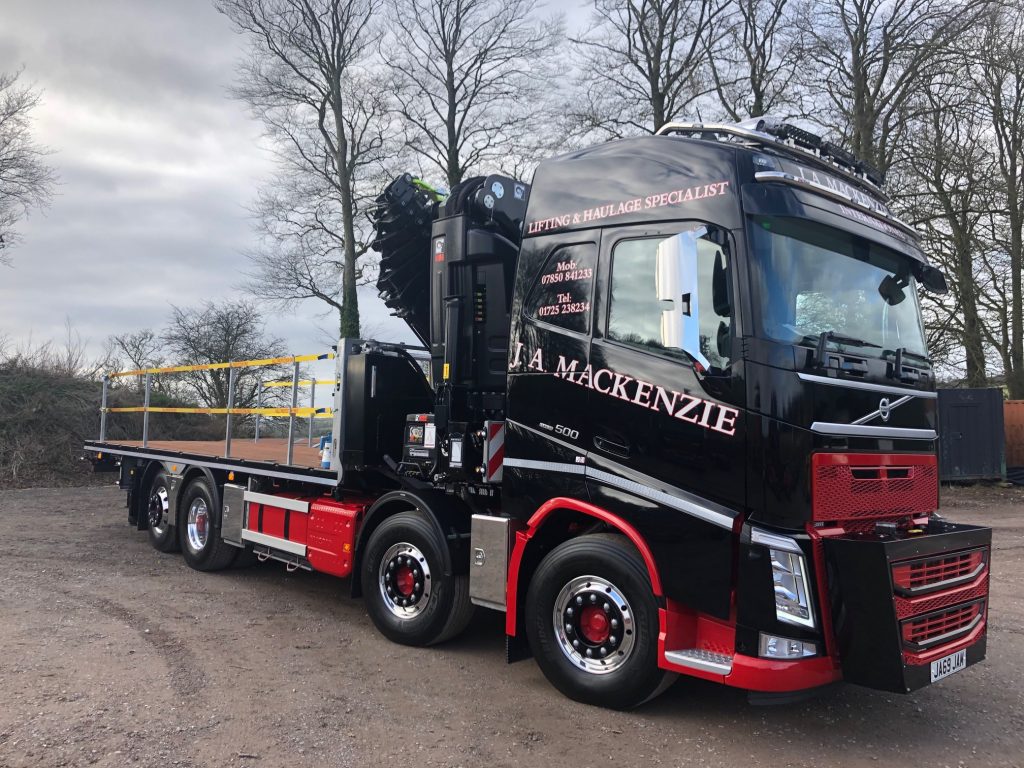

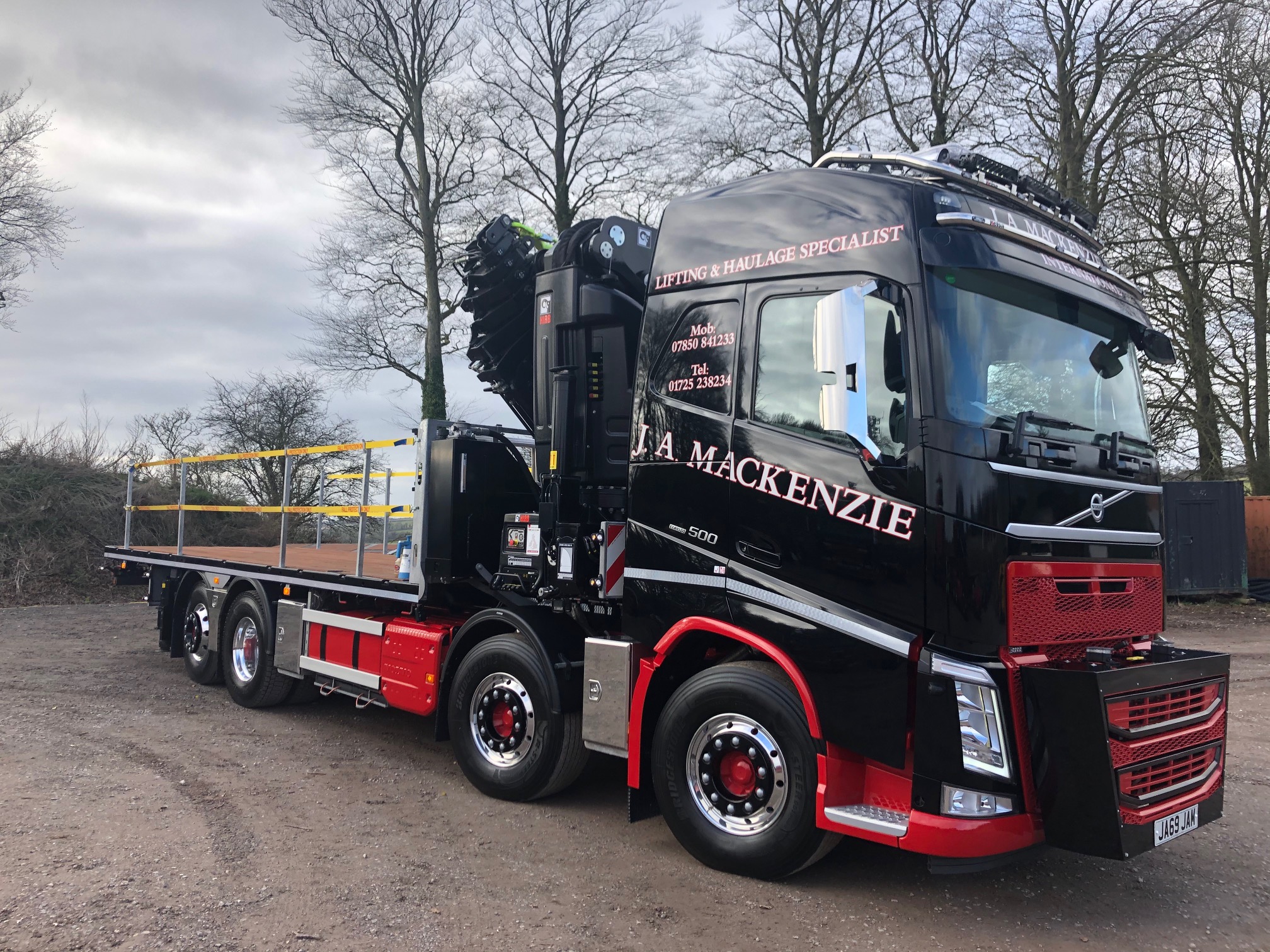

VOLVO FH 500 8 x 4 with Hiab 10589 E-10

The latest in Lorry Crane Technology, the longest Boom Crane in the UK with impressive duties for Gold Spec as per the rest of the fleet and couples up to our numerous Draw-Bar Trailers.

The longest Boom Crane in the UK. 100 tonne. Couples up with various draw bar trailer to become Rigid or Artic.

Crane specifications
Make	Hiab
Model	1058 E-10
Max Height	26.5 metres
Max Radius	24 metres
SWL @ Max Radius	2480 kgs
Max SWL	18000 kgs @ 4.4 metres

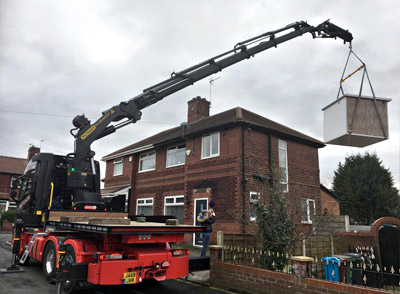

VOLVO FH with Hiab Hipro 638- E7 + Fly Jib

Hoist Capabilities, 44 tonnes and front legs 360 SWL capabilities .

Crane specifications
Make	Hiab
Model	638-E7
Max Height	31 metres
Max Radius	18 metres
Fly Jib	26 metres
SWL @ Max Load	2360 kg
Fly Jib	810 kg
SWL @ Max Radius	2480 kg
Max SWL	10600 kg @ 4.8 metres
